IEC60335-2-17 50mA Electric Blanket Test Equipment For Flexing Heating Elements

Name: IEC60335217 50mA Electric Blanket Test Equipment For Flexing Heating Elements
Brand: Pego Group
Price: 1 USD

Brand Name : Pego Group

Model Number : PG-HWF

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets/months

Delivery Time : 15 working days

Packaging Details : woodencase

Standard : IEC60335-2-17 clause 21.111.1 and figure 110

Application : equipment for flexing heating elements and internal wiring

Usage : electric blanket test equipment

Control mode : button control+meter

Working voltage : 220V/50Hz

Warranty : 12 months

Contact Now

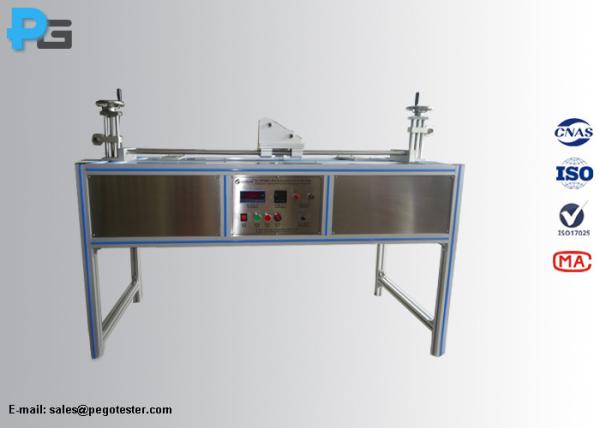

IEC60335-2-17 Figure 110 Equipment for Flexing Heating Elements and Internal Wiring

1. Introduction

The equipment for flexing heating elements and internal wiring is designed according to IEC60335-2-17 clause 21.111.1 and figure 110, it is mainly used for flexing test of heating elements and internal wiring of electric blanket, and check the degree of damage after a certain number of bending.

The equipment has a carrier of two pulleys, each pulleys have a groove with a radius of 4mm, the diameter at the base of the groove being 25mm. The pulleys are arranged so that the sample is horizontal where it passes between them. The sample is stretched over the pulleys, each end being loaded with a mass of 0.25kg. The carrier is moved by a means of a chain over a distance of 2m at a constant speed of approximately 0.33m/s for 25000 cycles (a cycle is two movements, one in each direction), the sample shall not break during the test.

2. pecification

Drive stroke	1000±20mm
Running speed of carrier	0.33±0.05m/s
Test current	0-50mA (adjustable)
weights	0.25KG±2% *2
Pulley diameter	Φ60mm
Cycles counter	Setting value: 0-999,999(settable) Real value:display the actual number of tests
Alarm	During the test, if there is a disconnection or the test cycles reaches, the buzzer will sound
Dimension	1500mm500mm800mm
Weight	Approximate 100KG
Working Power	220V/50Hz

3. Drawings

IEC60335-2-17 50mA Electric Blanket Test Equipment For Flexing Heating Elements
