IP4X Test Probe D for Verifying the Accessibility to Live Parts of Vehicle Connector, EV Plug and EV Socket-Outlet
1. Introduction
Test probe D is designed according to IEC60529 for IP4X testing. It means the protection against access to hazardous parts with a wire or the proection against solid foreign objects of φ1.0mm and greater. The probe can apply to test the outdoor user vehicle connector, EV plug and EV socket-outlet as per standard IEC61851-1.

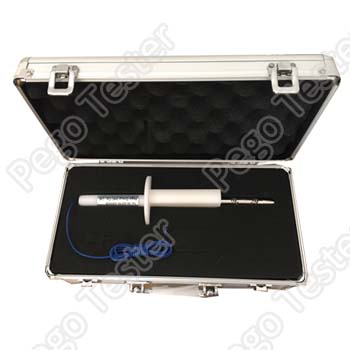

The probe consists of insulating handle and a rigid steel wire. the steel wire has a diameter of 1mm and length of 100mm. The probe can built-in 1N thruster, so that user can apply force directly during the test. And the probe will come with a lead to allow connect with a electrical indicator to show the contact with relevant parts.
2. Specification
| Length of test wire | 100mm |
| Diameter of test wire | 1mm+0.05 |
| Diameter of stop face | Sphere Φ35mm±0.2 |
| Length of handle | Approximately100mm |
| Dimater of handle | Φ10mm |
| Thruster (optional) | 1N±10% |
| Test IP grade | IP4X |
3. Frequently Asked Questions
1). How can we apply force during the test?
Pego: There are two methods for user to apply the force during the test: 1. User can choose the test probe with built-in thruster, the thruster is built-in the handle, just push the handle, the appropriate force can be applied. 2. The probe can work with a force gauge to apply force. The probe configured with a connector at the tail of the handle.
Normally, the recommended force applied to test is 1N, but in some product standards, the recommended force will be up to 10N.
2). How does the probe connect with a continuity indicating circuit?
Pego: The probe will come with a wire to connect with a continuity indicating circuit. User can create a continuity indicating circuit by themselves, or buy aN electrical indicator from Pego.
3). How to store and maintain the test probes in daily life?
Pego: The probes will come with a protective case, When not in use, place it in the case.
