Product Description:
Our hammer impact testing equipment uses both the Pendulum Impact and Vertical Impact methods to ensure accurate testing results. The Pendulum Impact method is used to test the impact resistance of materials and is ideal for measuring the energy absorbed by a material when subjected to a sudden impact. The Vertical Impact method, on the other hand, is used to test the impact resistance of materials when subjected to a vertical impact. Both methods are essential in determining the enclosures of electrical products against to mechanical impact.
This Impact Test Device is equipped with a motor-driven release mode, allowing for consistent and precise testing. This feature ensures that each test is performed with the same amount of force, eliminating any discrepancies in results.
Made of durable steel, our Impact Test Equipment is built to last. It can withstand repeated use without losing its accuracy and precision.
In conclusion, our Metal Impact Testing Equipment is the perfect addition to any industry that requires accurate and reliable testing results. With both Pendulum and Vertical Impact methods, a motor-driven release mode, and durable steel construction, this Impact Test Device is designed to provide precise results for years to come.
Features:

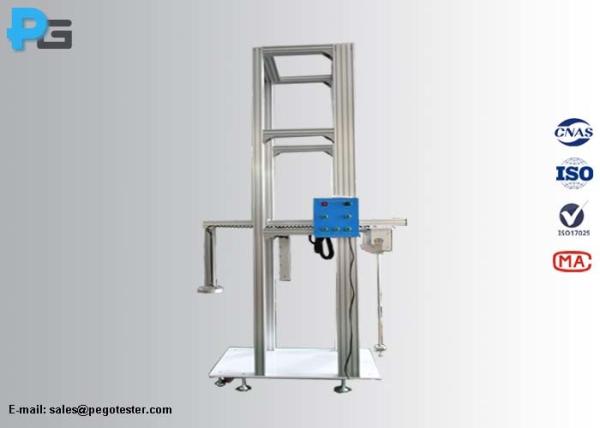

- Product Name: Hammer Impact Testing Equipment
- Lifting stroke: 200-1500mm (for pendulum and vertical impacts test), 200-2300mm (for vertical impact test)
- Test IK Level: IK08 To IK11
- Height of fall: IK08 /5J: 300mm±1%, IK09/10J: 200mm±1%, IK10/20J: 400mm±1%, IK11/50J: 500mm±1%
- Working power: 220V/50Hz
Technical Parameters:
| Technical Parameters | Values |
| Product Name | Hammer Impact Testing Equipment |
| Working Power | 220V/50Hz |
| Equivalent mass±2%kg | 1.7, 5, 5, 10 |
| Applicable Industry | EV Supply Equipment, EV Charging Station |
| Material of striking element | Steel |
| Release Mode | Motor-driven |
| Degrees of protection against external mechanical impacts (IK) | IK07: 2J, IK08: 5J, IK09: 10J, IK10: 20J, IK11: 50J |
| l/mm | Depends |
| Additional Information | Impact Resistance Tester |
| Reference standards | IEC62262, IEC60068-2-75 |
Applications:
The Pego Tester PG-IK11 hammer Impact Testing Equipment is ideal for a wide range of applications and scenarios. It is commonly used in the automotive, aerospace, and electronics industries for testing the impact resistance of various components and equipment. The product is particularly useful for testing EV supply equipment as per IEC61851-1. It is a motor-driven device that features button control and electromagnet instantaneous release for vertical impact tests, as well as manual control for pendulum impact tests.
The Pego Tester PG-IK11 Hammer Impact Testing Equipment is shipped by sea and has a delivery time of 25 working days. Each unit is packed in a wooden case to ensure maximum protection during transportation. The product offers energy levels of 5J ±5%, 10J ±5%, 20J ±5%, and 50J ±5%, providing a wide range of testing options. It is easy to use and provides accurate and reliable results every time.
In summary, the Pego Tester PG-IK11 Hammer Impact Testing Equipment is a must-have product for anyone looking to test the impact resistance of equipment and devices. It is a high-quality product that comes with a third-lab calibration certificate, ensuring that it meets all required standards for testing. The product is ideal for a wide range of applications and scenarios and offers energy levels of 5J ±5% (IK08), 10J ±5% (IK09), 20J ±5% (IK10), and 50J ±5% (IK11). It is easy to use and provides accurate and reliable results every time.
Support and Services:
At Impact Test Equipment, we provide technical support and services for all of our products, including:
- Product installation and set-up assistance
- Product troubleshooting and repair
- Product maintenance and calibration
- Product training and operator support
Our team of highly-skilled technicians and engineers are available to provide assistance and support to ensure that your Hammer Impact Testing Equipment product is performing at its best.
Packing and Shipping:
Product Packaging:
- Impact Test Equipment
- Protective foam packaging
- User manual and documentation
Shipping:
- Shipped via standard ground shipping
- Tracking number provided upon shipment
- Delivery within 15 business days
FAQ:
What is the brand name of the impact test equipment?
The brand name of the impact test equipment is Pego Tester.
2.
What is the model number of the impact test equipment?
The model number of the impact test equipment is PG-IK.
3.
Is the impact test equipment certified?
Yes, the hammer impact testing equipment can come with third-lab calibration certificate.
4.
Where is the impact test equipment manufactured?
The impact test equipment is manufactured in China.
5.
What are the payment terms for the impact test equipment?
The payment terms for the impact test equipment are T/T, Western Union, and MoneyGram.
